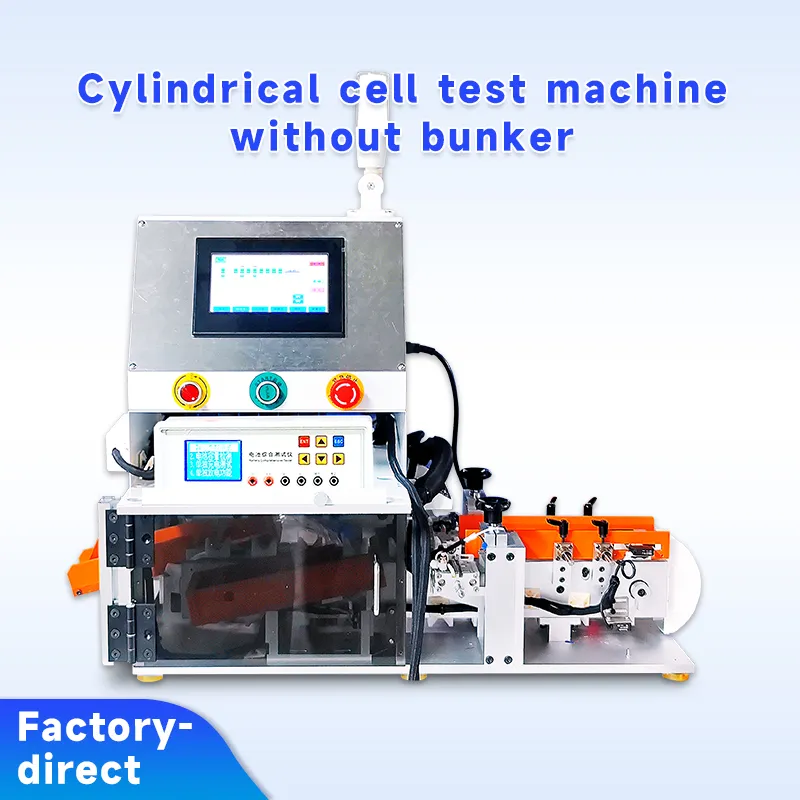

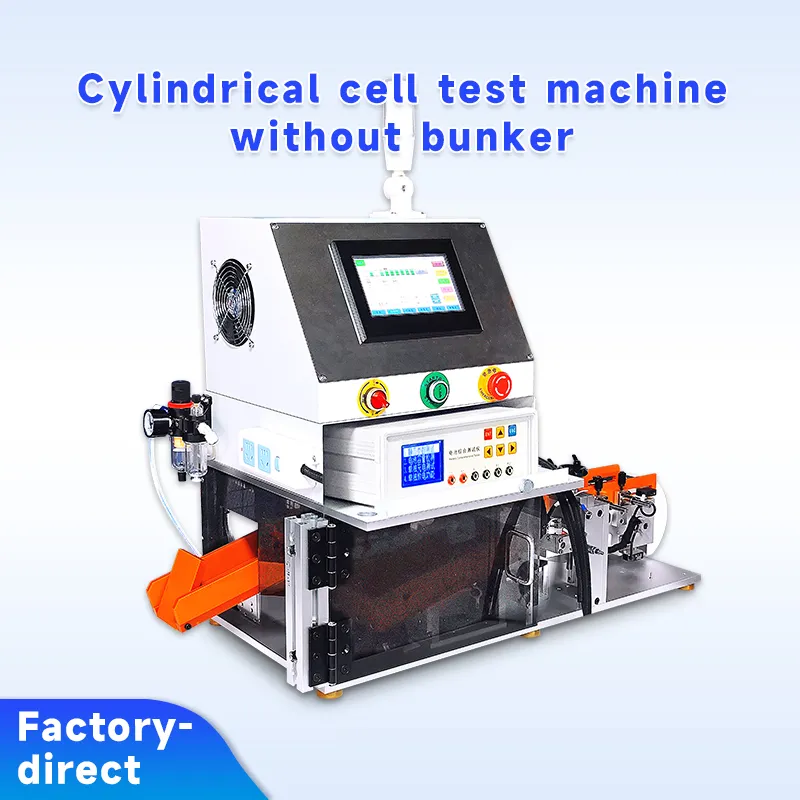

Cylindrical Battery Testing Machine (Without Material Hopper)
Cylindrical Battery Testing Machine (Without Material Hopper)
,

Cylindrical Battery Testing Machine (Without Material Hopper)

Technical parameters of voltage measurementVoltage measurement resolution:0.1MA
3561 Battery measuring instrument voltage range:19.9999v
Accuracy:±0.025%R.D.±6dgt
Internal resistance measurement technical parameters
Internal resistance measurement resolution:0.1m
3561 Battery tester resistance range:310.00mQ/3.1000n
Accuracy:±0.025%R.D.±6dgt
Internal resistance measurement frequency:
1KHz± 0.2KHz(AC four-terminal method)
Test efficiency: trouble-free operation
design capacity 2500-3000 Pcs/hour

Categories: ,
Project fit: Cylindrical Battery PACK assembly.
For quotation: Please share cell format, grouping pattern, insulation, welding method, loading method, output and traceability requirements.
Request a Project Quote

Project selection

Quick specification review

The final configuration is confirmed against the application, site or process requirements. Published information supports initial selection and does not replace the technical agreement.

Application

Battery PACK production, assembly, testing or process support.

Configuration

Power, capacity, interfaces and automation are confirmed for the project.

Documentation

Relevant technical documents are supplied according to the confirmed scope.

Implementation

Utilities, site conditions and delivery responsibilities require review.

Best applications and key planning factors

Best applications

Production requirements with defined cell or PACK format, process sequence, output target and testing scope.

Configuration options

Options are selected after the required interfaces, operating environment, capacity, controls and applicable standards are reviewed.

Technical specification

Review the product description and specification tab, then request confirmation for the intended application.

Information needed for quotation

  • Cell format and dimensions
  • PACK or module drawing
  • Required process and equipment
  • Capacity or output expectation
  • Automation level
  • Testing and traceability requirements
  • Available floor space and utilities
  • Required timeline

Related paths

Product FAQ

How is the final configuration confirmed?

Configuration is reviewed against the application, technical inputs, site conditions and agreed scope.

Can technical documents be requested before quotation?

Available documents can be provided after the intended product and project requirements are identified.

What should be included with an inquiry?

Share the application, quantity or target output, key specifications, destination and timeline.

Project inquiry

Discuss your requirements

Share the application and technical inputs so the team can review the appropriate configuration.

Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 3 files.

By submitting this form, you allow CowinLink Limited to use the information provided to respond to your inquiry and communicate about your requirements. See our Privacy Policy.

Cylindrical Battery Testing Machine (Without Material Hopper)

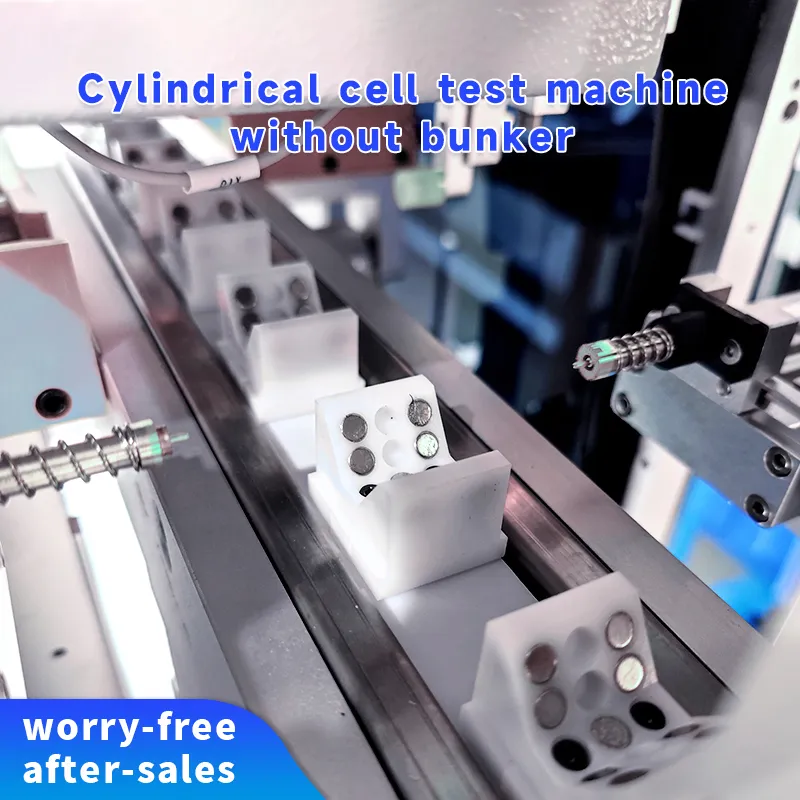

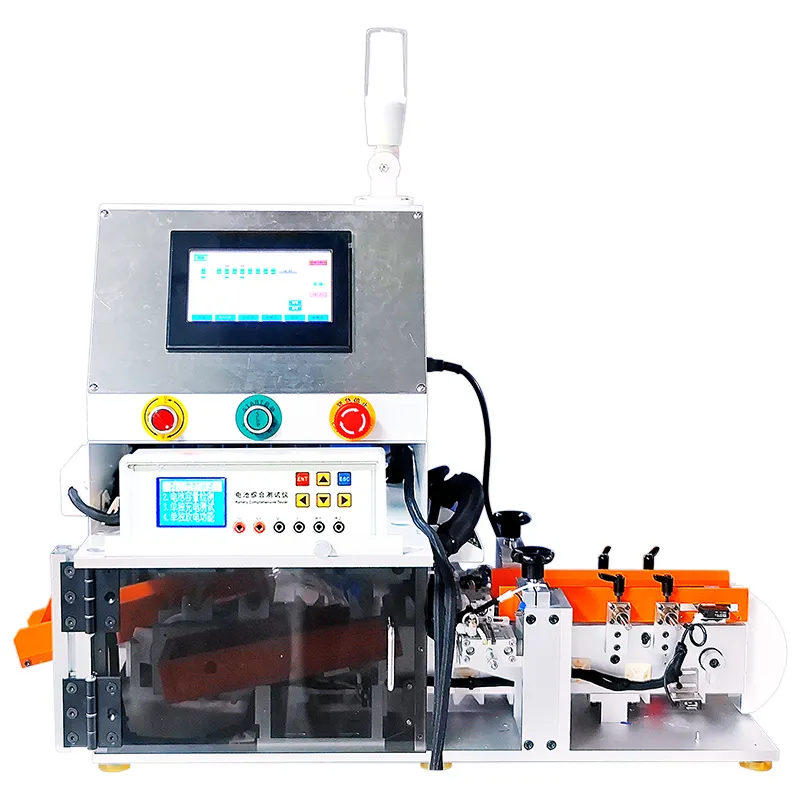

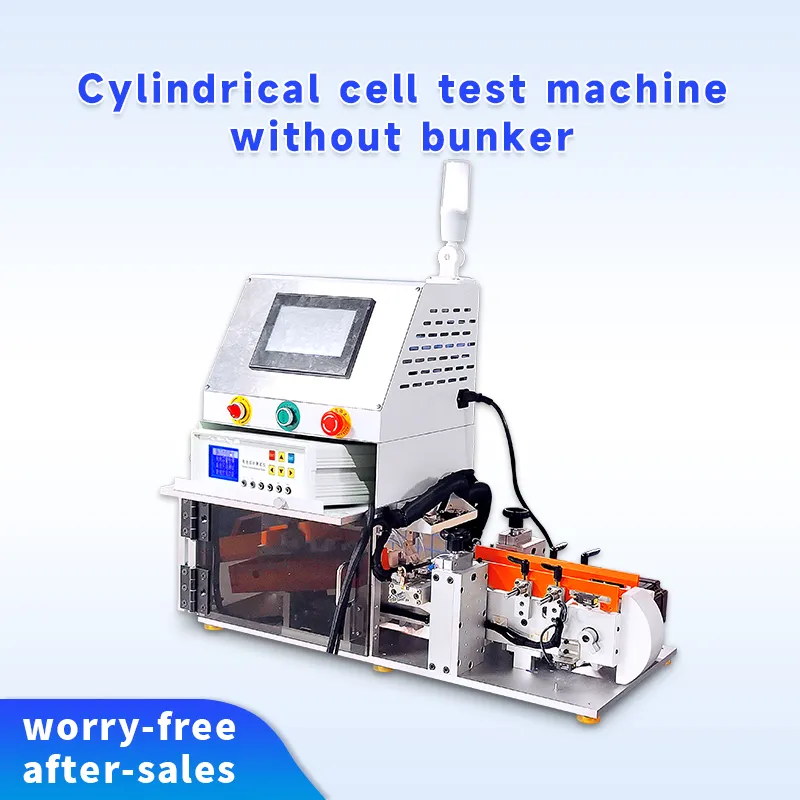

The Cylindrical Battery Testing Machine is a high-precision testing solution designed for accurate voltage and internal resistance measurement of cylindrical battery cells. With a design capacity of 2500-3000 pcs/hour, this machine ensures efficient and reliable testing, making it an essential tool for battery manufacturers and quality control labs.

Equipped with a 3561 Battery Measuring Instrument, the machine offers a voltage measurement resolution of 0.1mA and an accuracy of ±0.025% R.D. ±6dgt, ensuring precise voltage detection up to 19.9999V. The internal resistance measurement system features a resolution of 0.1mΩ, with an accuracy of ±0.025% R.D. ±6dgt, operating at a 1KHz ±0.2KHz AC four-terminal method for highly accurate resistance testing.

Built for trouble-free operation, this machine enhances production efficiency, improves battery quality assurance, and ensures consistent performance across testing cycles, making it a critical asset for battery pack production lines.
