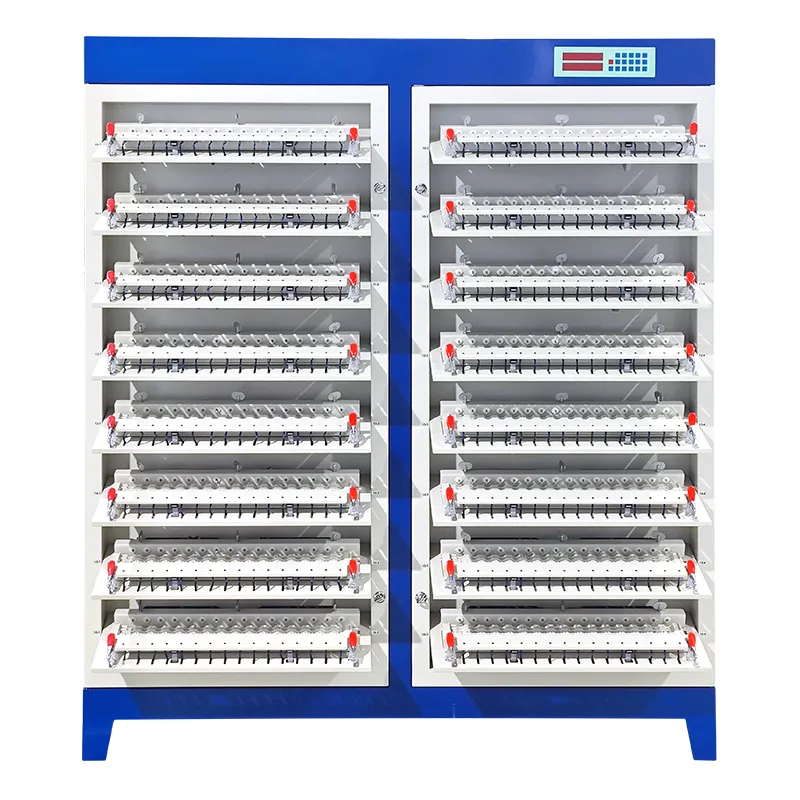

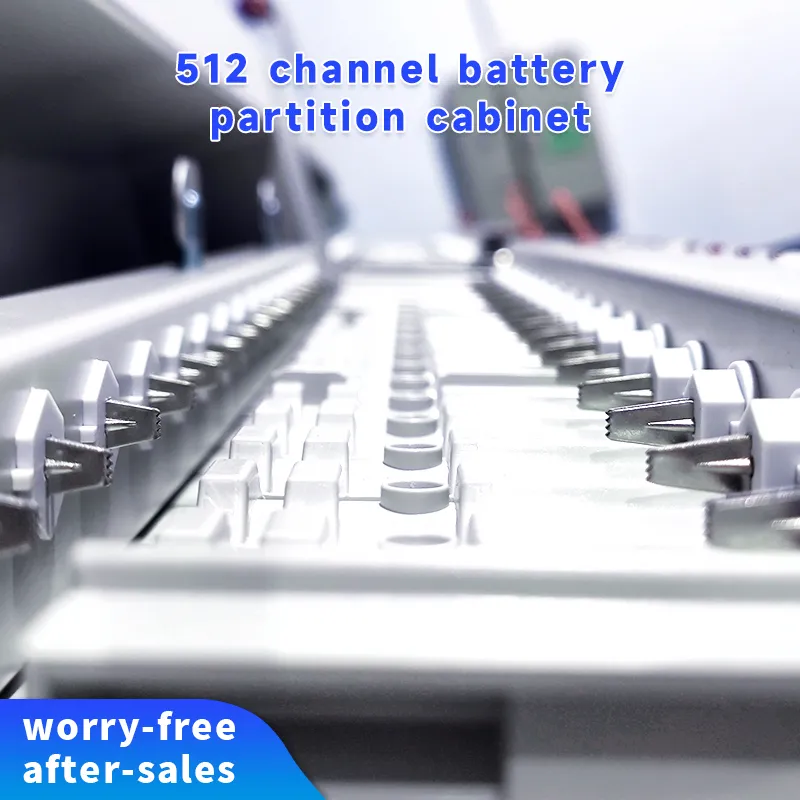

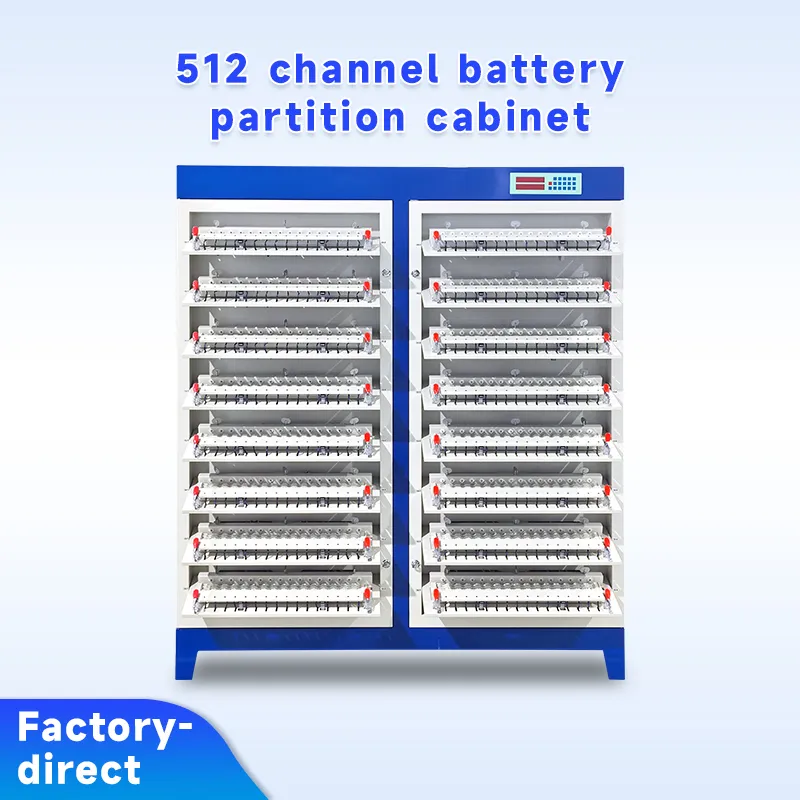

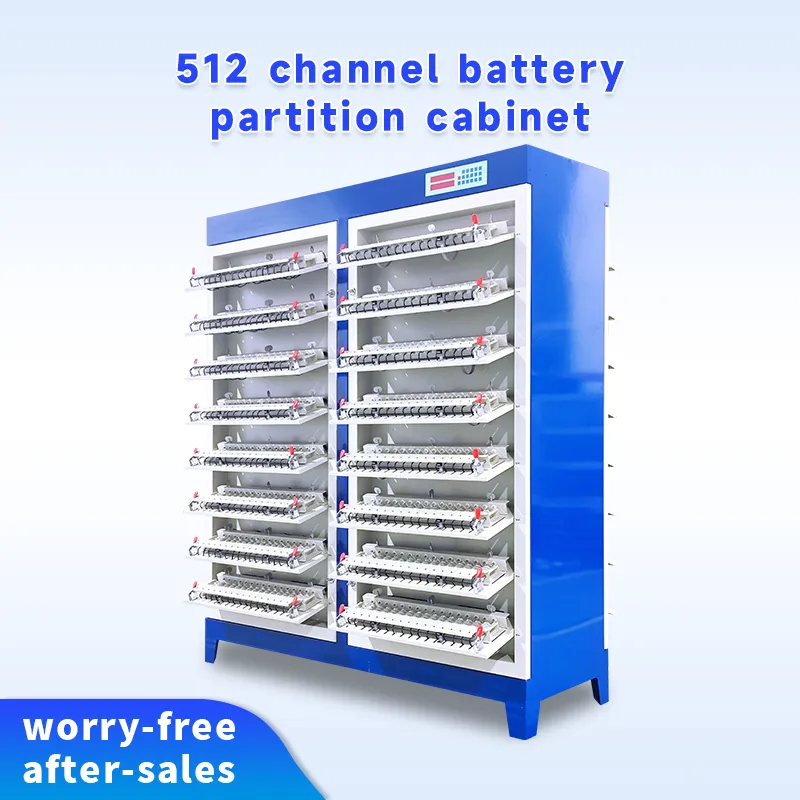

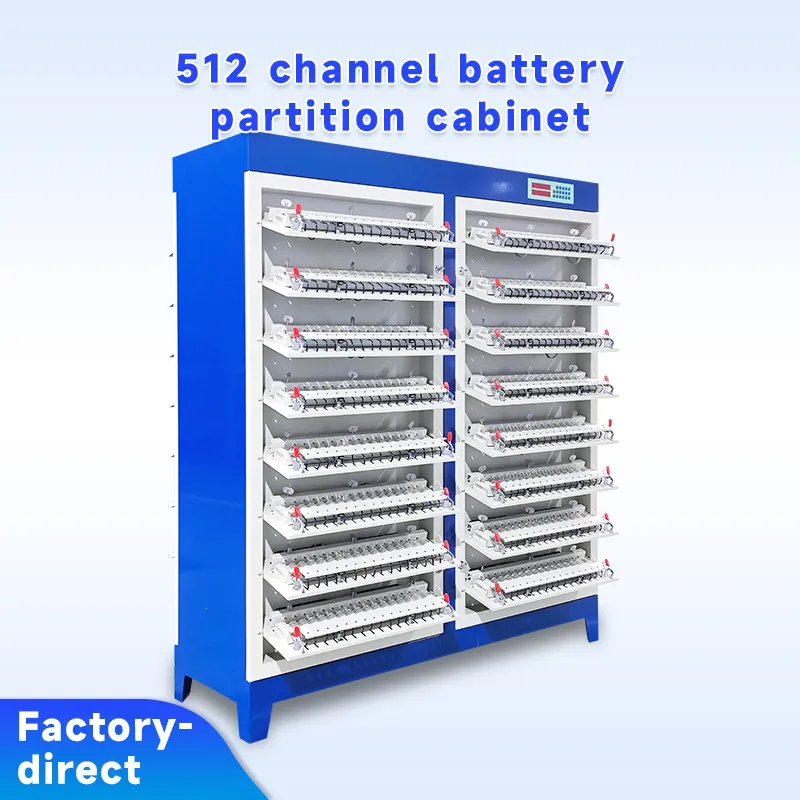

512-Channel Battery Grading Machine for Lithium Cell Testing
512-Channel Battery Grading Machine for Lithium Cell Testing
,

512-Channel Battery Grading Machine for Lithium Cell Testing

device channels: 512 channels
charging/discharging current range(mA):5~3000 mA
· Current measurement accuracy (mA):0.1% FS
·Current resolution(mA):1mA
· Voltage measurement range(mv):20~ 4950
voltage discharge range(mv):2000-450o
voltage measurement accuracy (mv):0.1% Fs
· Voltage resolution(mV):0.1
· Communication mode:TCP/IP
Work step content: constant current charging,constant current and
constant voltage charging,constant discharge,static

Categories: ,
Project fit: Cell testing and sorting.
For quotation: Please share cell format, measurement range, accuracy, channels, loading, takt time and data-interface requirements.
Request a Project Quote

Project selection

Quick specification review

The final configuration is confirmed against the application, site or process requirements. Published information supports initial selection and does not replace the technical agreement.

Application

Battery PACK production, assembly, testing or process support.

Configuration

Power, capacity, interfaces and automation are confirmed for the project.

Documentation

Relevant technical documents are supplied according to the confirmed scope.

Implementation

Utilities, site conditions and delivery responsibilities require review.

Best applications and key planning factors

Best applications

Production requirements with defined cell or PACK format, process sequence, output target and testing scope.

Configuration options

Options are selected after the required interfaces, operating environment, capacity, controls and applicable standards are reviewed.

Technical specification

Review the product description and specification tab, then request confirmation for the intended application.

Information needed for quotation

  • Cell format and dimensions
  • PACK or module drawing
  • Required process and equipment
  • Capacity or output expectation
  • Automation level
  • Testing and traceability requirements
  • Available floor space and utilities
  • Required timeline

Related paths

Product FAQ

How is the final configuration confirmed?

Configuration is reviewed against the application, technical inputs, site conditions and agreed scope.

Can technical documents be requested before quotation?

Available documents can be provided after the intended product and project requirements are identified.

What should be included with an inquiry?

Share the application, quantity or target output, key specifications, destination and timeline.

Project inquiry

Discuss your requirements

Share the application and technical inputs so the team can review the appropriate configuration.

Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 3 files.

By submitting this form, you allow CowinLink Limited to use the information provided to respond to your inquiry and communicate about your requirements. See our Privacy Policy.

512-Channel Battery Grading Machine for Lithium Cell Testing

The 512-Channel Battery Grading Machine is a high-precision system designed for accurate lithium cell testing and grading. It supports multiple work steps, including constant current charging, constant current and voltage charging, constant discharge, and static testing. With advanced TCP/IP communication, it ensures seamless data transmission and efficient monitoring. Ideal for large-scale battery testing operations, this machine delivers high accuracy, reliability, and efficiency.
