The final configuration is confirmed against the application, site or process requirements. Published information supports initial selection and does not replace the technical agreement.
Application
Commercial, fleet, public or infrastructure charging.
Configuration
Power, capacity, interfaces and automation are confirmed for the project.
Documentation
Relevant technical documents are supplied according to the confirmed scope.
Implementation
Utilities, site conditions and delivery responsibilities require review.
Best applications and key planning factors
Best applications
Charging projects that require a defined power level, connector plan, output arrangement and site-integration scope.
Configuration options
Options are selected after the required interfaces, operating environment, capacity, controls and applicable standards are reviewed.
Technical specification
Review the product description and specification tab, then request confirmation for the intended application.
Information needed for quotation
Country and project city
Application and site type
Quantity and target power
Available grid capacity
Connector and output configuration
Backend, payment and communication needs
Installation conditions
Required timeline
Related paths
Related products
Compare equipment within the same catalog category.
Configuration is reviewed against the application, technical inputs, site conditions and agreed scope.
Can technical documents be requested before quotation?
Available documents can be provided after the intended product and project requirements are identified.
What should be included with an inquiry?
Share the application, quantity or target output, key specifications, destination and timeline.
Project inquiry
Discuss your requirements
Share the application and technical inputs so the team can review the appropriate configuration.
By submitting this form, you allow CowinLink Limited to use the information provided to respond to your inquiry and communicate about your requirements. See our Privacy Policy.

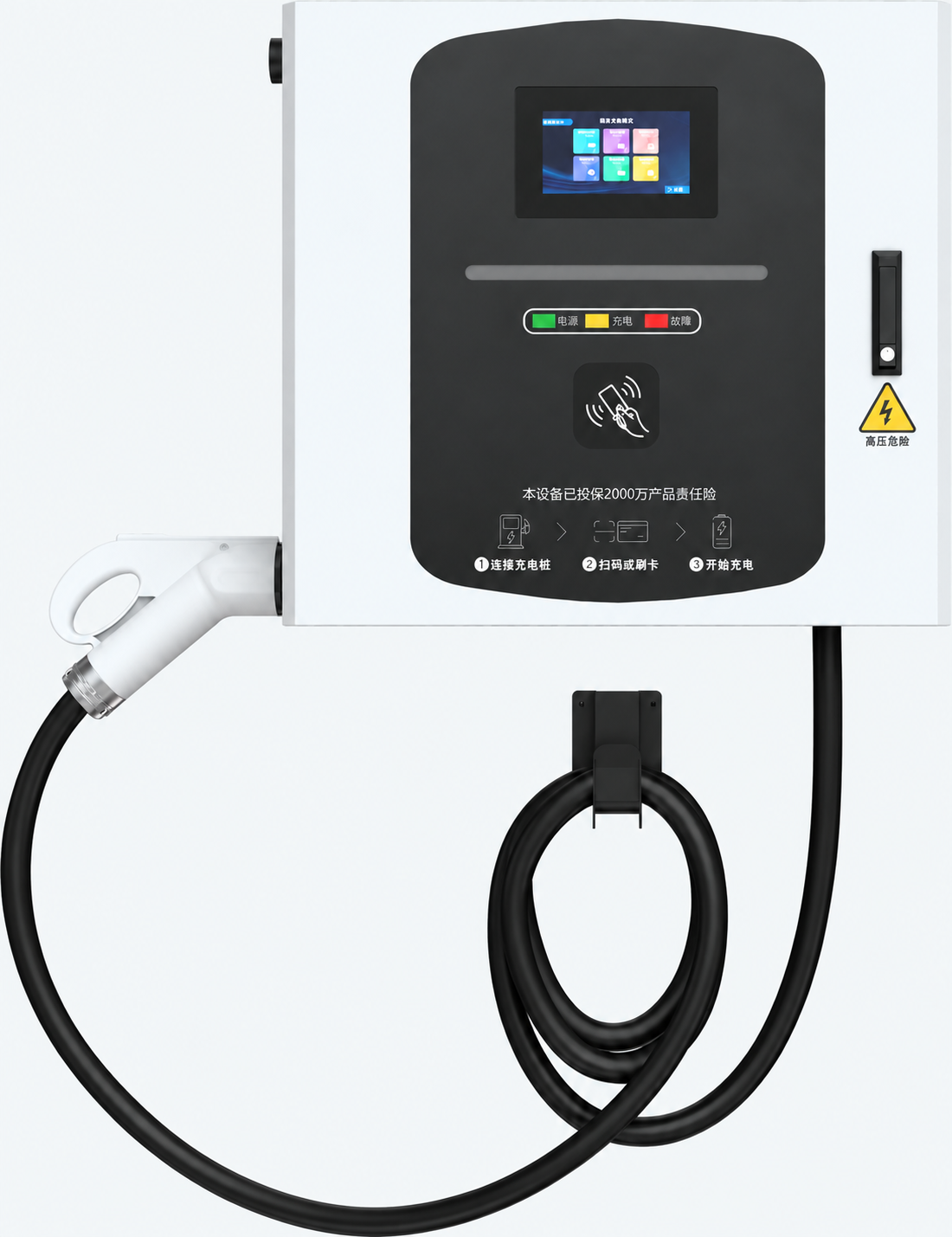

A space-conscious 40kW DC charging platform for commercial, workplace and destination charging projects.
CowinLink Energy supports international buyers with equipment sourcing, configuration coordination and project-level documentation. The final configuration is selected against the site electrical conditions, vehicle mix, duty cycle and operating plan.
Typical applications
Commercial parking
Workplace and destination charging
Urban charging locations
Fleet support sites
Technical specifications
Product type
Single-gun DC charger
Rated power
40 kW
Input voltage
400 ±10% Vac
Phase
3 phase
Frequency
50/60 Hz
Power factor
0.99 at nominal output
Maximum efficiency
≥97.2 %
Input THD
≤5 %
Output voltage
200–1000 Vdc
Output interface
CCS2 ×1
Maximum output current
133 A
Cable length
5 m
Ingress protection
IP54
Impact protection
IK10; screen IK08
Cooling method
Air-cooled
Dimensions – wall-mounted
650 × 700 × 300 mm
Dimensions – pedestal
1300 × 700 × 300 mm
Weight – wall-mounted
≤96 (≤212 lb) kg
Weight – pedestal
≤106 (≤234 lb) kg
Display
7-inch touchscreen
Authentication
QR code; RFID; PIN; VIN
Charging control
Scheduled charging
Protection
Overvoltage; overcurrent; leakage; short circuit; PWM fault detection
Specifications may vary by configuration and project requirements. Final technical specifications are confirmed in the quotation and technical agreement.
Project selection support
Share the target power level, connector preference, quantity, installation environment, vehicle mix and project schedule. Our team will coordinate the available configuration and confirm the technical scope in the quotation and technical agreement.
