EV charging equipment for project deployment

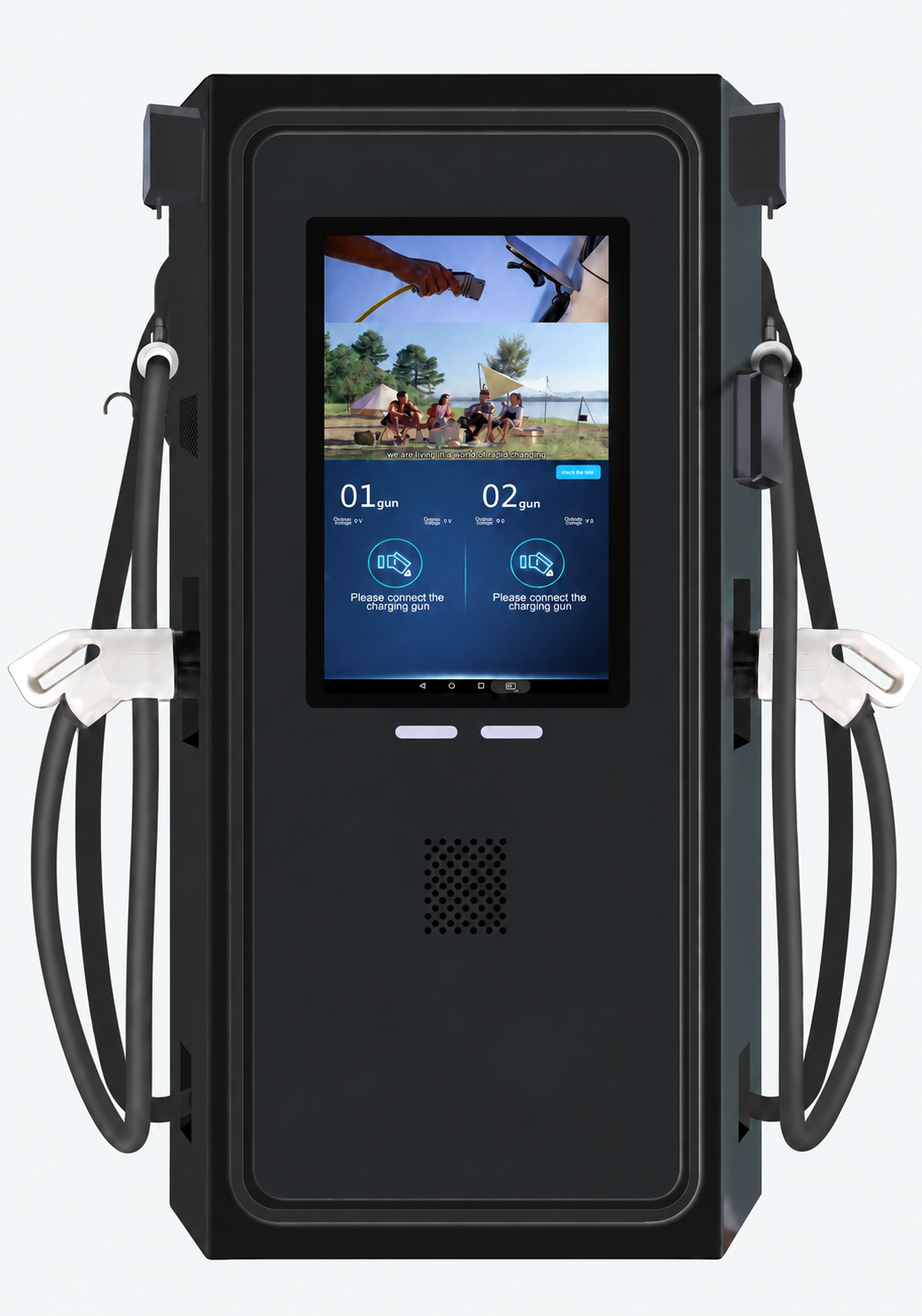

A dual-output 240kW DC charging platform for fleet, commercial and public charging projects requiring flexible power delivery.
Product overview
A dual-output 240kW DC charging platform for fleet, commercial and public charging projects requiring flexible power delivery.
CowinLink Energy supports international buyers with equipment sourcing, configuration coordination and project-level documentation. The final configuration is selected against the site electrical conditions, vehicle mix, duty cycle and operating plan.
Typical applications
- Fleet depots
- Public fast-charging stations
- Highway and travel locations
- Commercial charging hubs
Technical specifications
| Product type | Dual-output DC charger |
|---|---|
| Rated power | 240 kW |
| Number of outputs | 2 |
| Input voltage | 400 ±10% Vac |
| Phase | 3 phase |
| Frequency | 50/60 Hz |
| Power factor | 0.99 at nominal output |
| Maximum efficiency | ≥97.2 % |
| Input THD | ≤5 % |
| Output voltage | 200–1000 Vdc |
| Output interface | Dual CCS2 |
| Maximum output current | 350 A |
| Cable length | 5 m |
| Ingress protection | IP55 |
| Impact protection | IK10; screen IK08 |
| Cooling method | Air-cooled |
| Dimensions | 900 × 1780 × 690 mm |
| Weight | ≤460 (≤1014 lb) kg |
| Display | 32-inch touchscreen |
| Payment | POS |
| Authentication | RFID; PIN; QR code; VIN; App |
Specifications may vary by configuration and project requirements. Final technical specifications are confirmed in the quotation and technical agreement.
Project selection support
Share the target power level, connector preference, quantity, installation environment, vehicle mix and project schedule. Our team will coordinate the available configuration and confirm the technical scope in the quotation and technical agreement.
