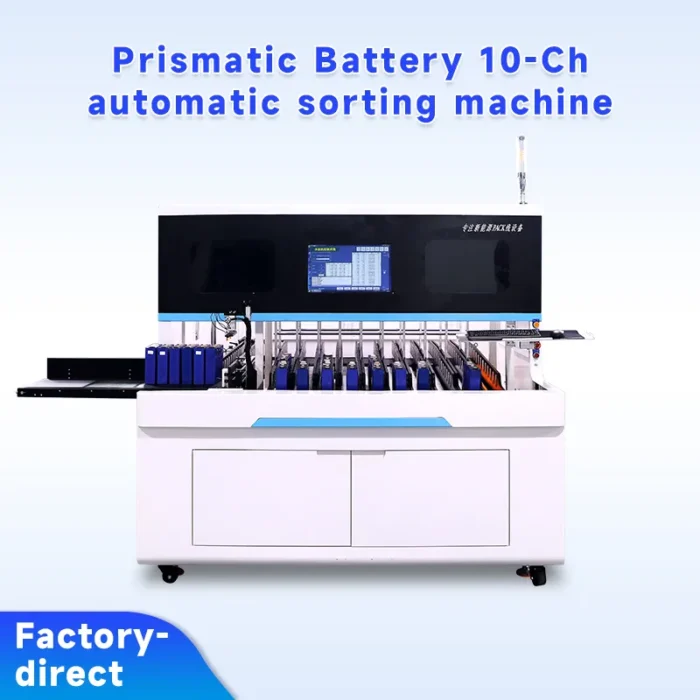

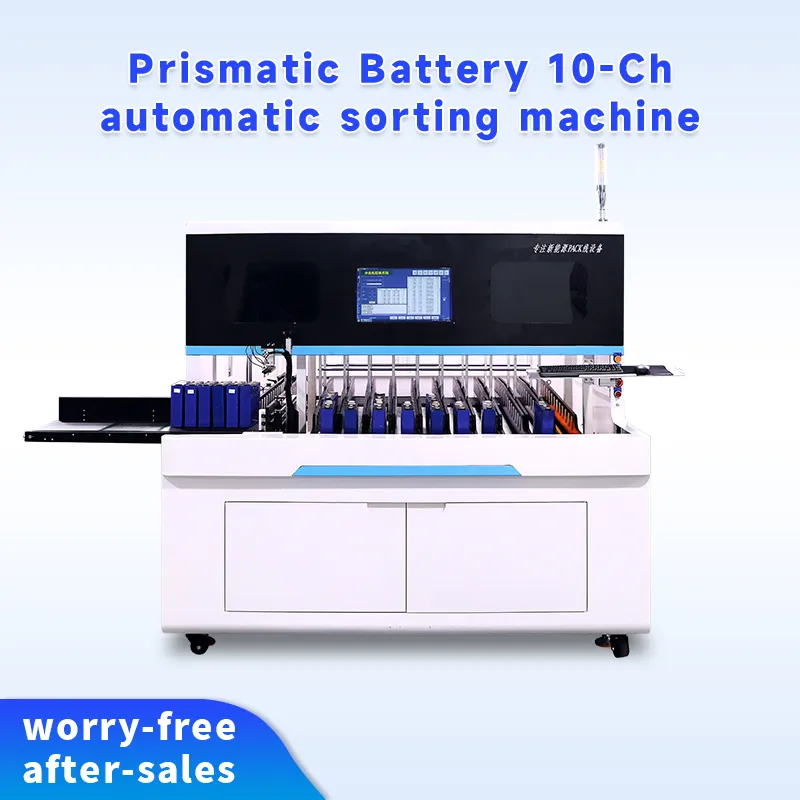

10-Channel Automatic Prismatic Battery Sorter OCV and IR testing machine
10-Channel Automatic Prismatic Battery Sorter OCV and IR testing machine
,

10-Channel Automatic Prismatic Battery Sorter OCV and IR testing machine

Equipment channel number:10ch(9OK ch,1 NG ch)
Internal resistance detection accuracy:range 0-60m2;Accuracy:0.5%rdg; Resolution 0.1m
voltage measurement accuracy:range 0-20v;Basic accuracy is 0.015%rdg; Resolution 0.1mV
Scanning device:compatible with QR code barcode,99.5% pass rate
NG equipment failure rate:<2%(only caused by the equipment)
Probability of product damage:<0.1%
Equipment capacity speed:8-12PPM
Suitable battery:prismatic cell length 60-260mm/thickness 20-60mm/ heigh 100-220mm

Categories: ,
Project fit: Cell testing and sorting.
For quotation: Please share cell format, measurement range, accuracy, channels, loading, takt time and data-interface requirements.
Request a Project Quote

Project selection

Quick specification review

The final configuration is confirmed against the application, site or process requirements. Published information supports initial selection and does not replace the technical agreement.

Application

Battery PACK production, assembly, testing or process support.

Configuration

Power, capacity, interfaces and automation are confirmed for the project.

Documentation

Relevant technical documents are supplied according to the confirmed scope.

Implementation

Utilities, site conditions and delivery responsibilities require review.

Best applications and key planning factors

Best applications

Production requirements with defined cell or PACK format, process sequence, output target and testing scope.

Configuration options

Options are selected after the required interfaces, operating environment, capacity, controls and applicable standards are reviewed.

Technical specification

Review the product description and specification tab, then request confirmation for the intended application.

Information needed for quotation

  • Cell format and dimensions
  • PACK or module drawing
  • Required process and equipment
  • Capacity or output expectation
  • Automation level
  • Testing and traceability requirements
  • Available floor space and utilities
  • Required timeline

Related paths

Product FAQ

How is the final configuration confirmed?

Configuration is reviewed against the application, technical inputs, site conditions and agreed scope.

Can technical documents be requested before quotation?

Available documents can be provided after the intended product and project requirements are identified.

What should be included with an inquiry?

Share the application, quantity or target output, key specifications, destination and timeline.

Project inquiry

Discuss your requirements

Share the application and technical inputs so the team can review the appropriate configuration.

Please enable JavaScript in your browser to complete this form.
Click or drag files to this area to upload. You can upload up to 3 files.

By submitting this form, you allow CowinLink Limited to use the information provided to respond to your inquiry and communicate about your requirements. See our Privacy Policy.

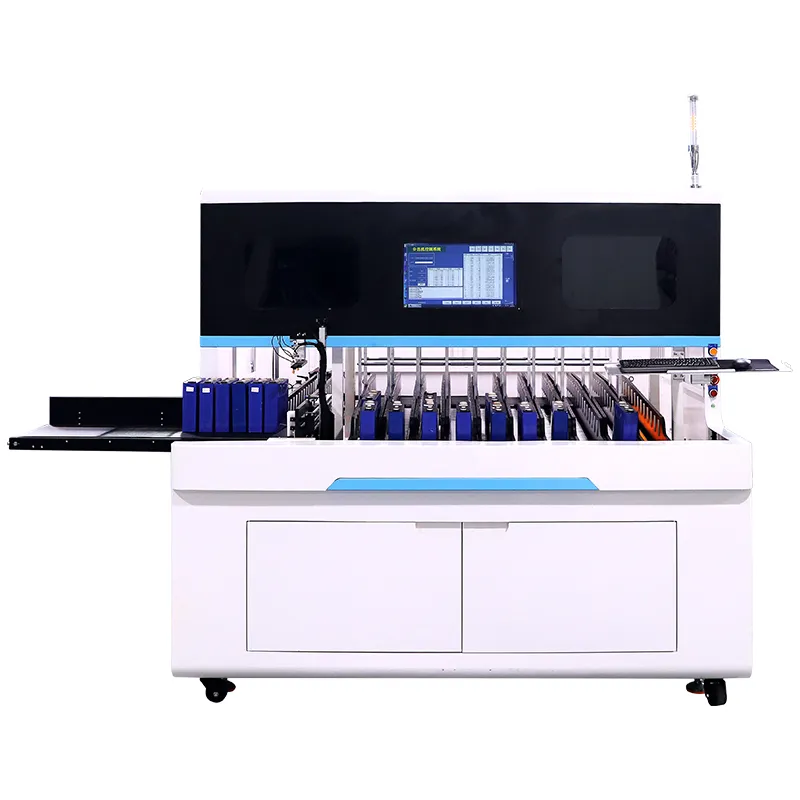

10-Channel Automatic Prismatic Battery Sorter (OCV & IR Testing)

The 10-Channel Automatic Prismatic Battery Sorter is designed for high-precision Open Circuit Voltage (OCV) and Internal Resistance (IR) testing, ensuring accurate classification of prismatic battery cells. It features 9 OK sorting channels and 1 NG (non-conforming) channel, optimizing efficiency in battery grading.

With an internal resistance accuracy of ±0.5% rdg and a voltage measurement accuracy of ±0.015% rdg, the machine delivers reliable and consistent results. It supports QR code and barcode scanning with a 99.5% pass rate, making it ideal for automated production lines.

Designed for prismatic cells with a length of 60-260mm, thickness of 20-60mm, and height of 100-220mm, this sorter ensures high-speed processing at 8-12 PPM while minimizing equipment failure and product damage.
