Custom Prismatic Aluminum-Shell Lithium Battery PACK Production Line | Automated Assembly, Testing, and Welding System
Manual loading of battery cells
Automatic cell scanning and 0CV testing and sorting
Manual adhesive application
Manual stacking
Automatic extrusion and compression
Manual application of plastic steel straps
Manual labeling of module codes with a scanner
CCD polarity detection
Manual placement of connection strips
Laser welding
Post-weld visual inspection by hand
Overhead conveyor for transferring to the next line
The PACK section uses a manual non-powered roller conveyor system.

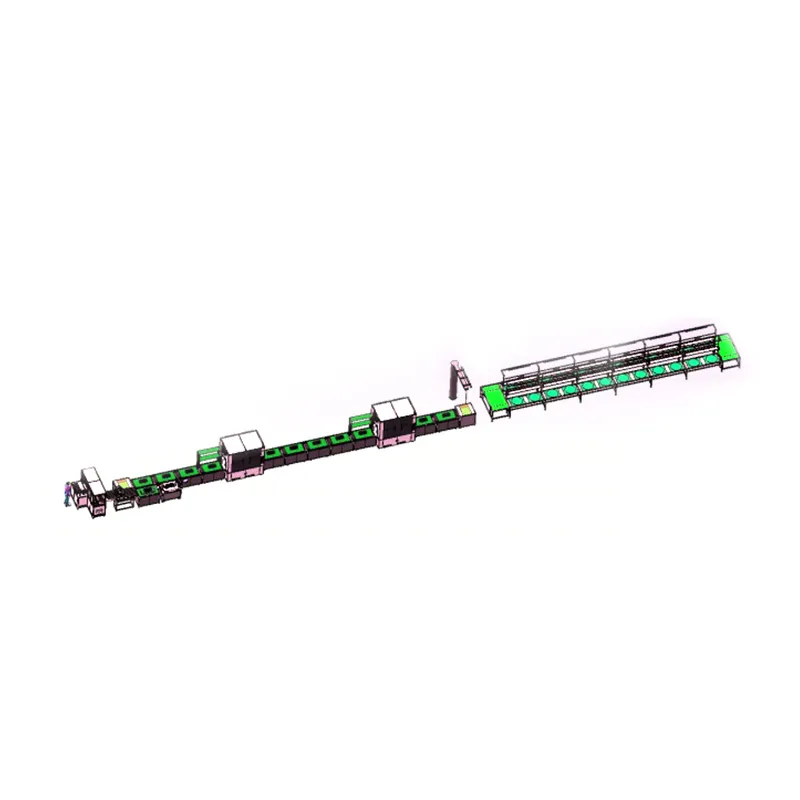

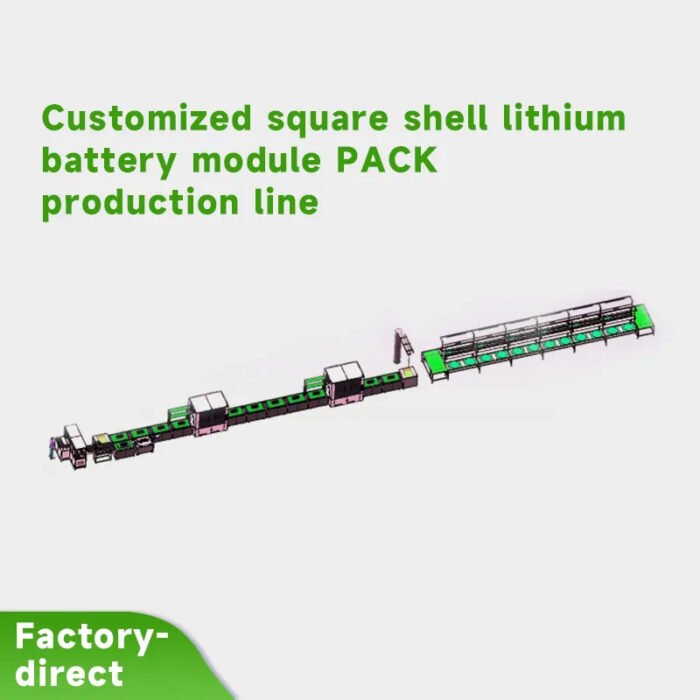

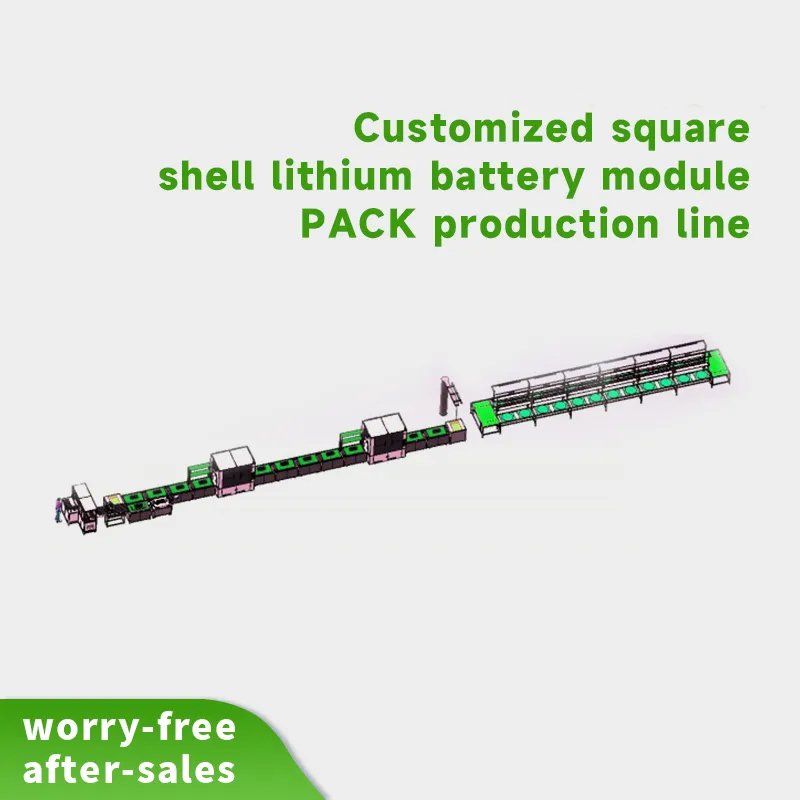

Custom Prismatic Aluminum-Shell Lithium Battery PACK Production Line
This semi-automated production line is designed for efficient assembly, testing, and welding of prismatic aluminum-shell lithium battery PACKs, ensuring precision and reliability in manufacturing.

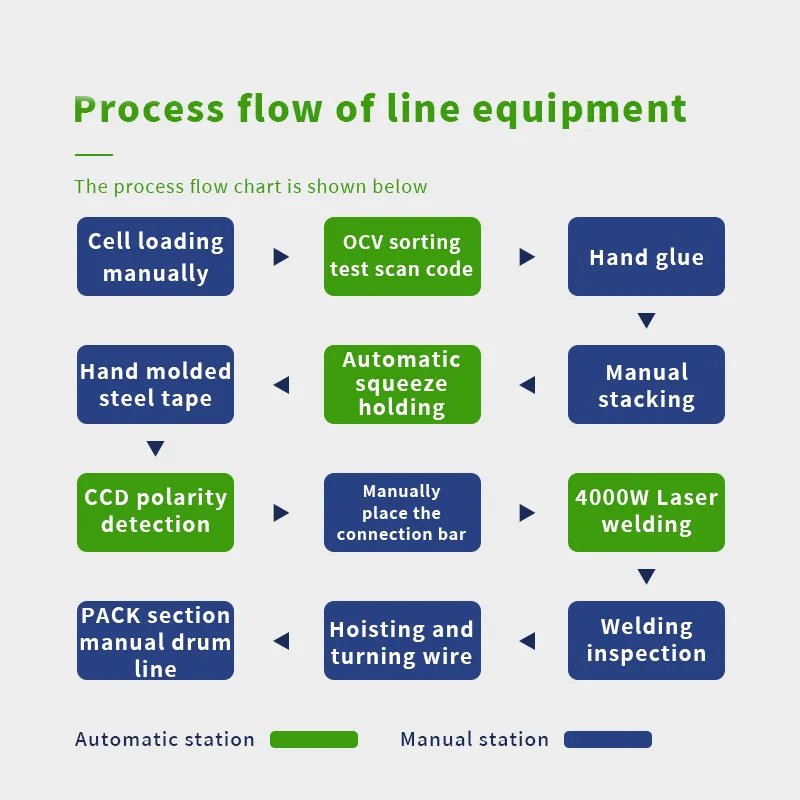

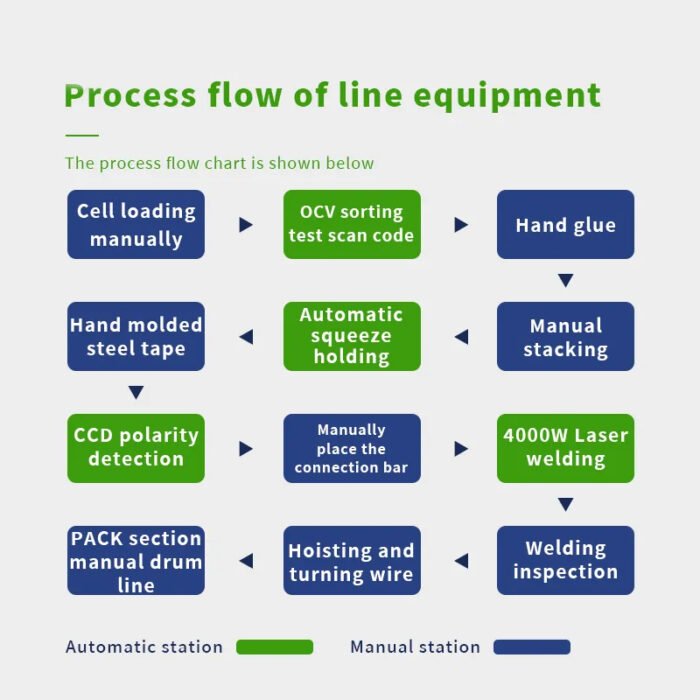

Key Processes:
- Manual battery cell loading onto the production line
- Automatic cell scanning, OCV testing, and sorting for quality control
- Manual adhesive application and stacking for secure module formation
- Automatic extrusion and compression to maintain uniform PACK structure
- Manual application of plastic steel straps for reinforcement
- Manual labeling of module codes with a scanner for traceability
- CCD polarity detection to prevent assembly errors
- Manual placement of connection strips for electrical integration
- Laser welding for high-precision, strong connections
- Post-weld visual inspection by hand to ensure quality
- Overhead conveyor system for efficient transfer to the next assembly stage
- Manual non-powered roller conveyor system for smooth PACK section handling
This custom production line enhances efficiency, consistency, and quality control, making it an ideal solution for prismatic lithium battery PACK manufacturing.
