Ultrasonic Lithium Metal Welding Machine (Mk-tf2042)
Application range
This ultrasonic welding machine is a kind of equipment that can be applied to the laminated welding of metal foil materials.
Ultrasonic welding machine (The picture is only for reference)

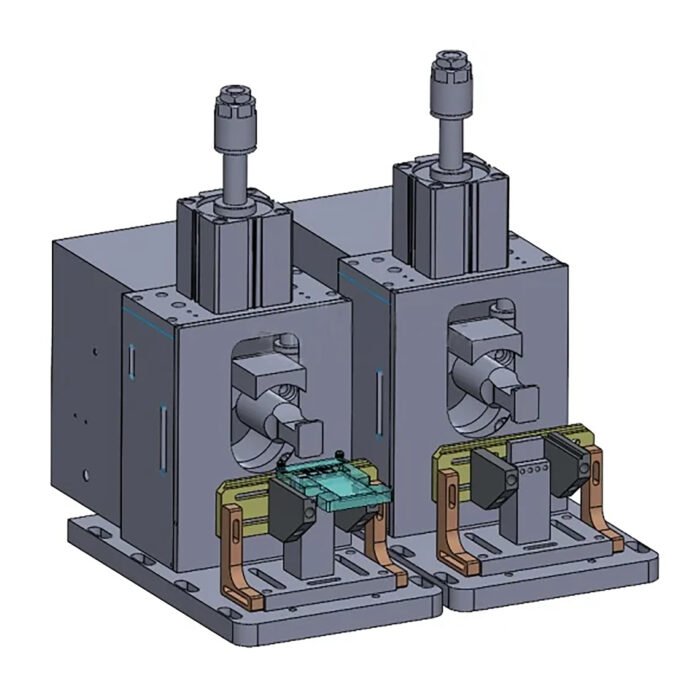

Welding tooling (The picture is only for reference)
Functional features
1) The positive and negative poles are welded separately, and one welding machine is shared for pre-welding and final welding.
2) It adopts internationally advanced voltage-stabilizing circuit, and the welding output power is stable.
3) It is welded with matching jigs, with good welding consistency and high yield rate.
4) The welding power is strong, the welding is firm with low internal resistance and no false welding.
5) It can realize the stack welding of up to 30 layers of copper foil.
6) The welding mold uses special mold steel, which has good wear resistance and a long service life
7) HMI operation, digital setting, which is convenient and easy to use.
Technical parameters
| Series | Name | Parameters | ||||
| 1 | Power source | Single phase AC220V±10%, 50HZ, 8.4kW | ||||
| 2 | Air source | 0.5~0.8Mpa compressed air | ||||
| 3 | Welding power | 4200W (Adjust the welding amplitude from 0 to 100%, and the output power will change accordingly) | ||||
| 4 | Ultrasonic frequency | 20KHZ | ||||
| 5 | Welding time | Within 0.6S | ||||
| 6 | Ultrasonic frequency | 20KHZ | ||||
| 7 | Application range | Tab | Thickness(mm) | Sheet | Thickness(μm) | Layer |
| Al | 0.1-0.4 | Al | 9-15 | ≤45 | ||
| Cu/Ni | 0.1-0.4 | Cu | 4.5-8 | ≤45 | ||
| 8 | Equipment dimension | L510*W510*H540mm | ||||
| 9 | Equipment weight | Around 100Kg | ||||
FAQ
Q:Do you provide after-sales service?
A:Yes, our engineers available to service machinery overseas.
Q: What quotation to use?
A:General FOB quotation, other quotations can also be negotiated.
Q: In case of FOB quotation, the factory is responsible for which port to ship to?
A:Shenzhen Port.
Q:Full set of lithium battery equipment, for example:
A:Mixing machine-coating machine-rolling machine-slitting machine-stacking machine-Die cutting machine-welding machine–packaging machine –injection machine–degas machine, etc.
Q:If I want to customize the equipment, how long does it take?
A:We can provide customized services for our customers. It usually takes about 90-120 days, depending on the specifications of the customized equipment.
Q:Are you a manufacturing factory or trading company?
A:We have 3 modern manufacturing factories in Shanghai, Hubei and Dongguan of China.
Q:How to buy?
A:Simply contact our sales and inform your demands, request for a Proforma Invoice. The order will be shipped after receipt of all payment.
Q:How can I trust you?
A:Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check our factory. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for a long time. You can always rely on us.
Q:How is your warranty?
A:12 months trouble-free warranty from the date of acceptance of the equipment, during which the supplier is responsible for free remote guidance maintenance equipment. For the parts that need to be replaced during the warranty period, the transportation cost is paid by the buyer before delivery.
Q:How is your technical support?
A:Online technical support is provided free of charge during the warranty period, and offline technical support is chargeable.
