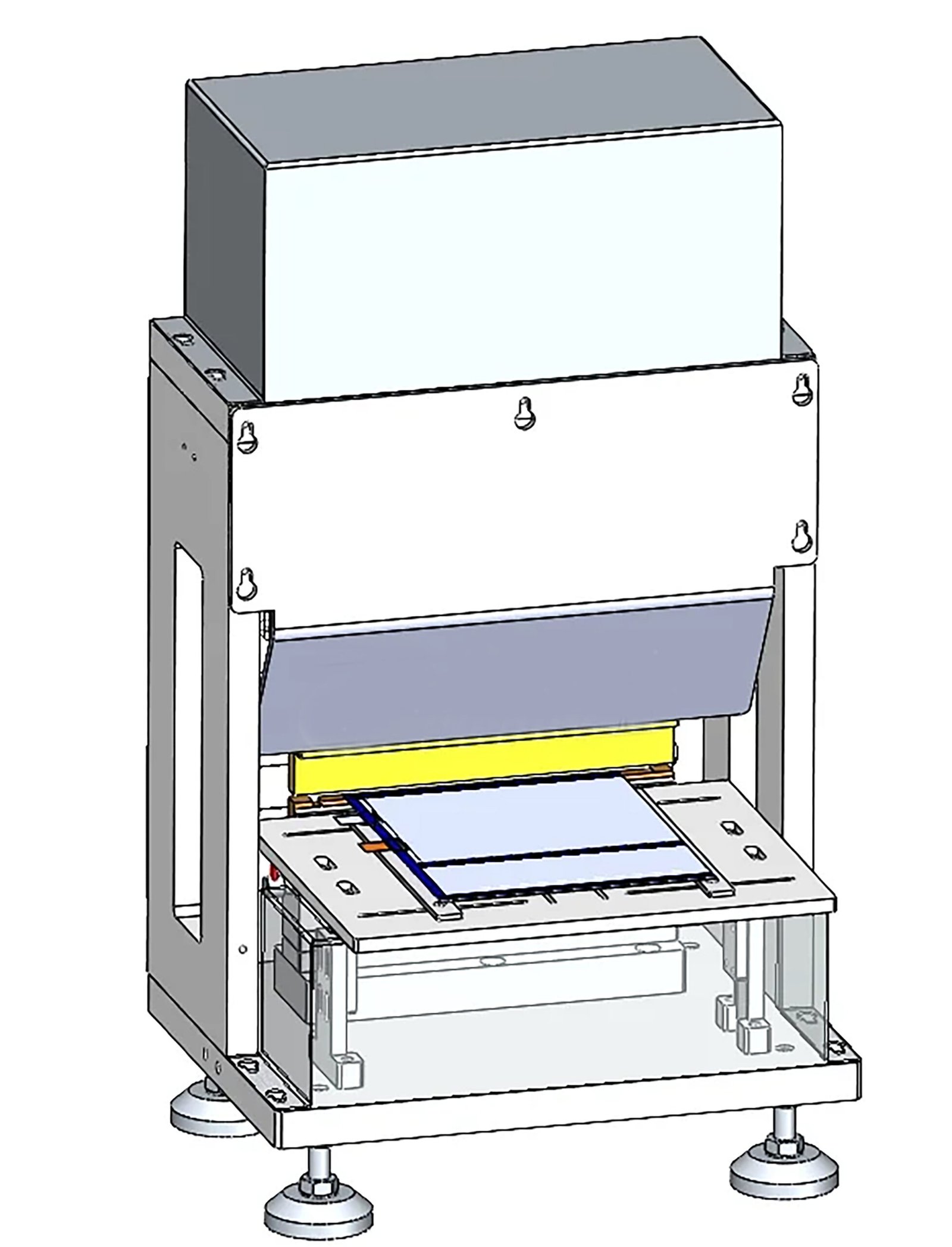

Side Edge Sealing Machine (Mk-mfb200c)
This is a heating side sealing equipment applied to pouch batteries. This equipment is driven by a cylinder and heats the sealing head through resistance to achieve the fusion of the aluminum-plastic film under the set pressure.
Application range
This is a heating side sealing equipment applied to pouch batteries. This equipment is driven by a cylinder and heats the sealing head through resistance to achieve the fusion of the aluminum-plastic film under the set pressure.
Function features
1) Manual loading and unloading, the fixture clamps the battery cell.
2) The resistive heating tube heats the head, and the temperatures of the upper and lower heads are precisely and independently controlled, with excellent sealing effect.
3) Cylinder drive is used to achieve hot pressing, and the pressure is adjustable.
4) Hard sealing is adopted, and the holding time of the sealing pressing is adjustable.
Technical parameters
| Series | Name | Parameters | Note |
| 1 | Power source | AC220V±10%, 50HZ, 1.5KW | |
| 2 | Air source | 0.5~0.8Mpa compressed air | |
| 3 | Suitable cells | Max.L120*W150*H10mm | |
| 4 | Thickness of battery | Max.10mm | |
| 5 | Length of sealing head | 220mm | |
| 6 | Width of edge sealing | 3~8mm, according to the requirements | |
| 7 | Temperature of edge sealing | Max.250℃, adjustable, accuracy ±3℃ | |
| 8 | Time of edge sealing | 0-99s adjustable | |
| 9 | Equipment dimension | L340*W260*H600mm | |
| 10 | Equipment dimension | Around 60Kg |
FAQ
Q:Do you provide after-sales service?
A:Yes, our engineers available to service machinery overseas.
Q: What quotation to use?
A:General FOB quotation, other quotations can also be negotiated.
Q: In case of FOB quotation, the factory is responsible for which port to ship to?
A:Shenzhen Port.
Q:Full set of lithium battery equipment, for example:
A:Mixing machine-coating machine-rolling machine-slitting machine-stacking machine-Die cutting machine-welding machine–packaging machine –injection machine–degas machine, etc.
Q:If I want to customize the equipment, how long does it take?
A:We can provide customized services for our customers. It usually takes about 90-120 days, depending on the specifications of the customized equipment.
Q:Are you a manufacturing factory or trading company?
A:We have 3 modern manufacturing factories in Shanghai, Hubei and Dongguan of China.
Q:How to buy?
A:Simply contact our sales and inform your demands, request for a Proforma Invoice. The order will be shipped after receipt of all payment.
Q:How can I trust you?
A:Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check our factory. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for a long time. You can always rely on us.
Q:How is your warranty?
A:12 months trouble-free warranty from the date of acceptance of the equipment, during which the supplier is responsible for free remote guidance maintenance equipment. For the parts that need to be replaced during the warranty period, the transportation cost is paid by the buyer before delivery.
Q:How is your technical support?
A:Online technical support is provided free of charge during the warranty period, and offline technical support is chargeable.
