Semi-automatic Lithium Metal Stacking Machine (Mk-mdp150lib)
Application range
This semi-automatic lamination stacking machine is a device that can be applied to the laminating process of electrode sheets for liquid batteries and solid-state batteries. The device has a desktop-type structural design and is placed for use in the glove box, which is an automated equipment suitable for laboratory or small-batch production.

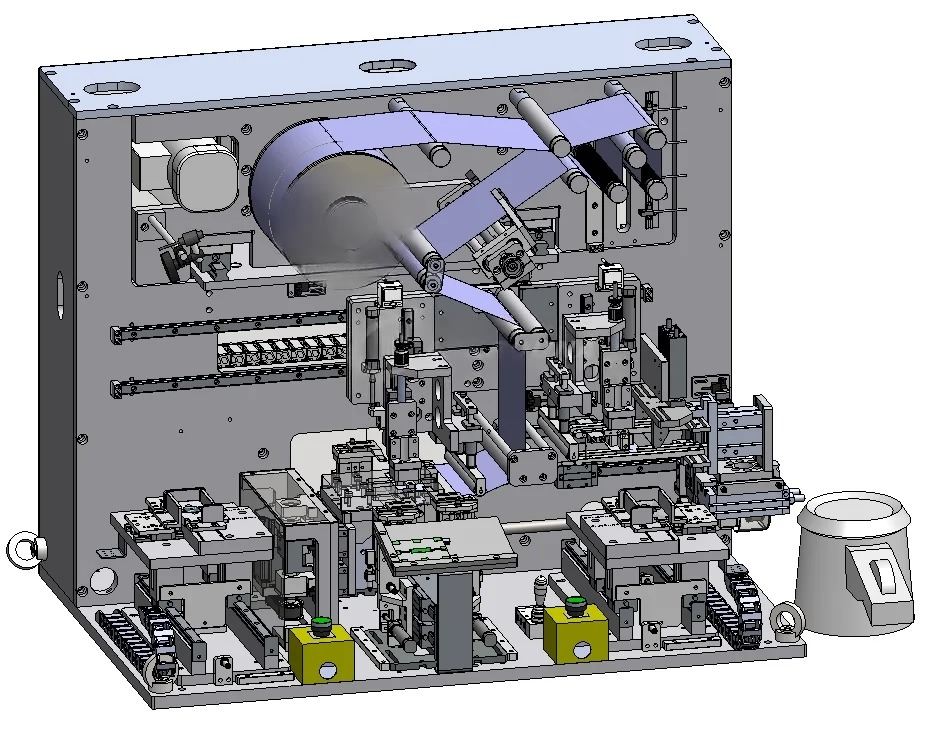

Illustration of the semi-automatic laminating machine(picture is for reference only)
| Illustration of the positive electrode sheet material trough | Illustration of the lithium negative electrode sheet material trough |
Function features
1) “Z”-shaped belt movement, and the separator tension can be adjusted;
2) The pole piece is manually loaded, automatically positioned, and cyclically stacked.;
3) The number of lamination can be freely set;
4) Two-station design, and the lamination program can be flexibly switched;
5) Can stack metallic lithium, without adhesion, and without obvious pressure marks.;
6) With the compatible design adopted, the variation of battery size can be realized by customizing some molds and adjusting the pressure claws, with a wide adjustment range.;
7) Controlled by PLC, operated by HMI, easy to use and maintain.
Technical parameters
| Series | Name | Parameters |
| 1 | Power source | Single-phase AC220V±10%, 50HZ, Power 2kw |
| 2 | Air source | 0.5~0.8Mpa Compressed air |
| 3 | Stacking method | “Z-type stacking” (liquid battery, with rolled separator) |
| Solid-state stacking (for SSB, sheet-type separator) | ||
| 4 | Operating method | Manual material feeding, automatic material taking and lamination, and manual cell pasting. |
| 5 | Stacking spee | Laminating the electrode sheet takes 3-5 seconds / piece, and laminating the metallic lithium takes 5-7 seconds / piece (excluding the lamination preparation time for each cell) |
| 6 | Stacking accuracy | Liquid battery：≤±0.3mm(the dimension of the relative position between the electrode sheets, with a lamination layer number of 25) |
| Solid-state battery: ≤ ± 0.5mm (the relative position size between the electrode sheets, with a lamination layer number of 25) | ||
| 7 | Electrode sheet width | 50~120mm |
| 8 | Electrode sheet length | 50~150mm (Tab direction ,Without tab size) |
| 9 | Stacking thickness | Max:20mm |
| 10 | Battery tab lengt | Max:25mm |
| 11 | Equipment size | L960*W670*H800mm |
| 12 | Equipment weight | Above 240Kg |
