Drying Room with Low Dew Point for Lithium Metal Battery

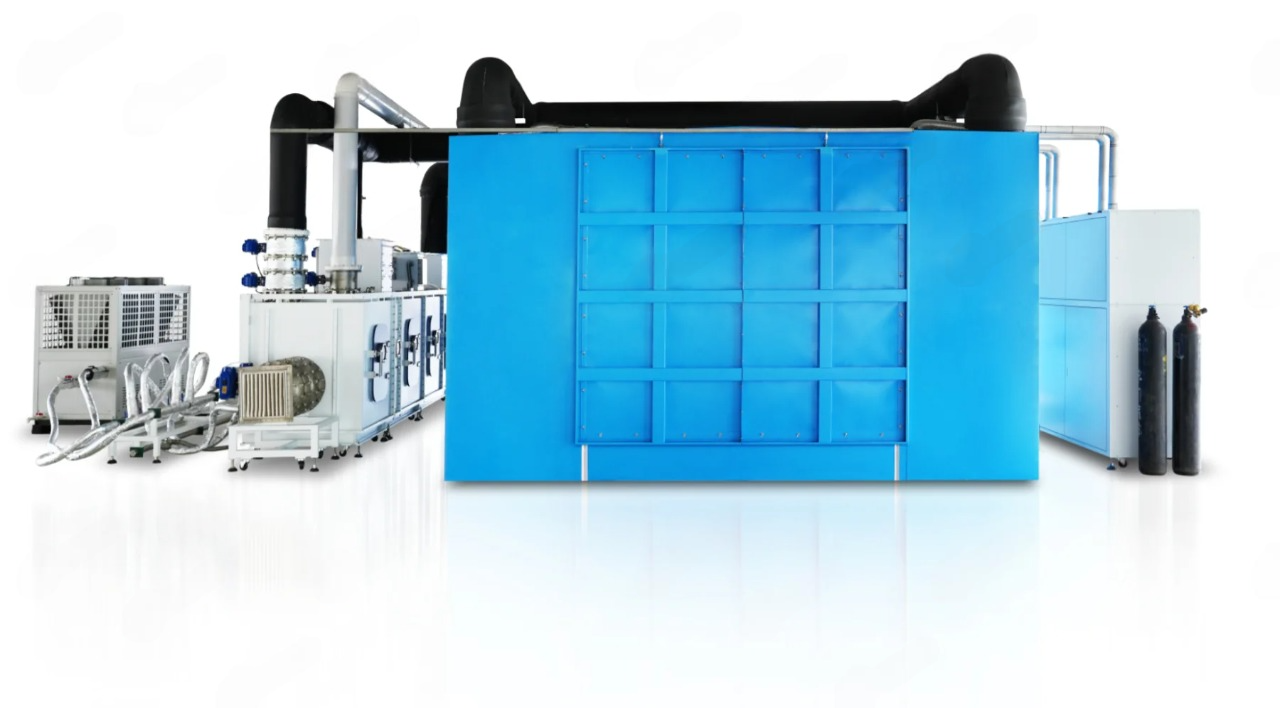

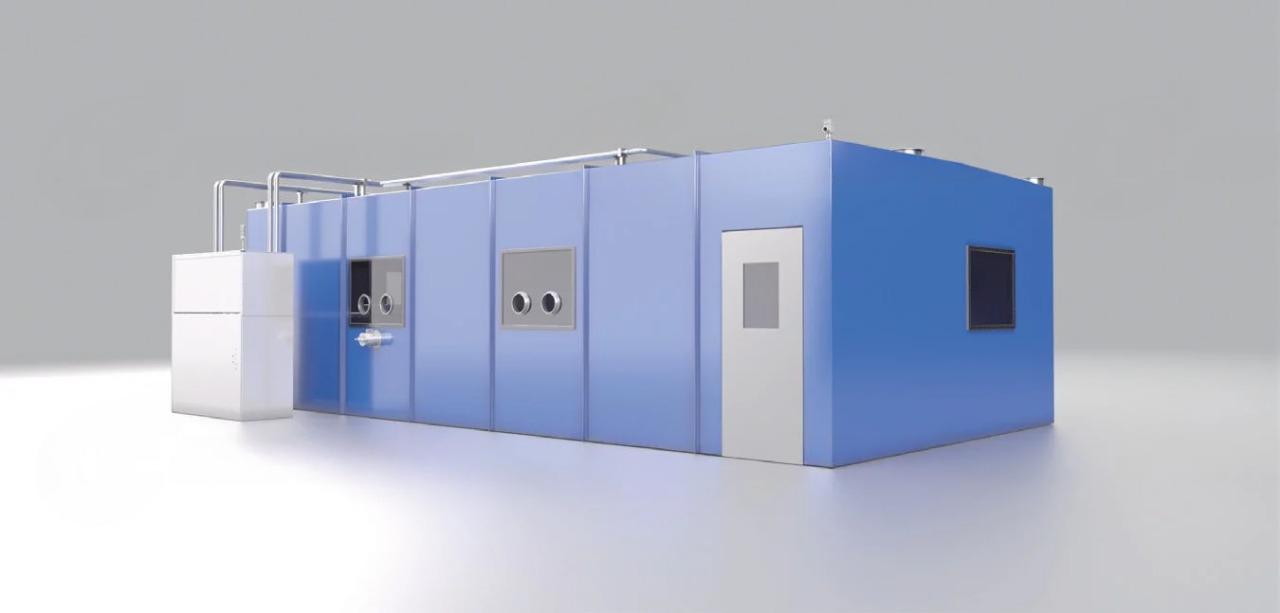

Mikrouna Sealed Drying Room for Lithium Metal Battery Pilot Line

Advantages of the sealed drying room:

1) Industry pain points: The floor of the ordinary drying room is not closed, with poor sealing and large leakage. The dehumidifier must keep running all the time for 24 hours, resulting in high power consumption.

2) The design principle of Mikrouna’s sealed drying room: The sealed drying room adopts a fully sealed structure, uses stainless steel instead of color steel plate, and the overall sealing grade reaches the level of the first-class, without gas leakage and moisture penetration.

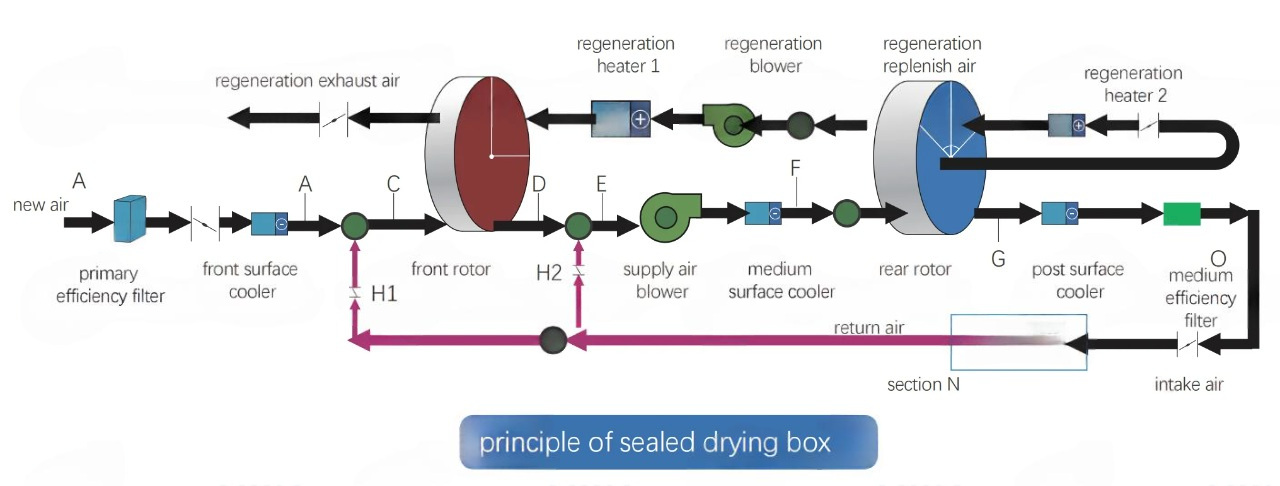

3) Mikrouna’s sealed drying room uses the dehumidifying rotor system to quickly reduce the dew point of the chamber to the required value, closes the pipeline valve between the sealed drying room and the dehumidifier,

maintains low dew point operation, and switches to the molecular sieve dehumidification cycle system, so that the power consumption of the dehumidifier unit decreases.

4) The valves at all sections of the dehumidifier of the sealed drying room adopt the control mode of electric sealed valve + electric regulating valve, which is convenient for debugging and reducing the leakage during shutdown.

5) Through the dew point feedback of the sealed drying room, the rotation speed of the rotor and the regenerative heating power can be intelligently changed to achieve energy saving.

6) Due to the high sealing of the sealed drying room, the operation of the dehumidifier can be completely stopped during the period when no one is working, thereby realizing energy saving.

Product features:

A. Energy conservation and environmental protection

B. Stability design

– All rotor dehumidification units (except for the new air blower unit) adopt the secondary

return air design. By adjusting the primary return air volume, the unit can operate stably.

– The electric heating control adopts an isolation circuit (the circuit is designed by our

company and the electric control room is made by our company).

– Adding an energy storage water tank in the chilled water system is beneficial to avoiding

the frequent start/stop of the chiller.

– The chiller is designed with a multi-head mode to reduce the risk of low-pressure alarm.

FAQ

Q: What are the unique technical features of Mikrouna’s lithium-metal solid-state battery equipment?

A: Our equipment employs advanced solid-state electrolyte preparation technology, enabling high-precision membrane deposition that ensures uniformity and stability of the electrolyte membrane. Additionally, it boasts efficient electrode coating and packaging processes, enhancing battery performance and consistency.

Q: How efficient is Mikrouna’s lithium-metal solid-state battery equipment in production?

A: Our equipment is meticulously designed and optimized for high production efficiency while maintaining product quality. Through automation control and advanced process flows, we significantly reduce production cycles to meet large-scale market demands.

Q: How is the stability and reliability of the equipment ensured?

A: We use high-quality components and materials, subject them to rigorous quality inspections. Extensive reliability testing and optimization are conducted during R&D, complemented by comprehensive after-sales service and technical support to guarantee long-term stability and reliability.

Q: What are the energy-saving advantages of Mikrouna’s equipment?

A: Our equipment adopts an energy-efficient design concept, effectively reducing energy consumption during operation. By optimizing the power system and energy management, we minimize unnecessary energy waste, helping users lower production costs.

Q: Are the operation and maintenance of the equipment complex?

A: We strive to provide user-friendly equipment with a simple and intuitive operation interface, requiring minimal training for operators. Detailed maintenance manuals and training services are also provided to facilitate easy routine maintenance and care.

Q: How does Mikrouna ensure the quality of lithium-metal solid-state batteries produced by its equip

A: The equipment is equipped with high-precision detection and monitoring systems to real-time monitor key production parameters. Coupled with a rigorous quality control system, every batch of products undergoes strict testing to meet high-quality standards.

Q: What about customization services for the equipment?

A: We offer customized equipment solutions tailored to clients’ specific needs and production scales. Whether for small R&D lines or large-scale production lines, we can design the most suitable equipment configurations.

Q: What safety considerations have been incorporated into Mikrouna’s equipment?

A: The equipment features multiple safety protection mechanisms, including overvoltage and overcurrent protection, as well as fire and explosion-proof designs. Adherence to relevant safety standards and regulations throughout production ensures the safety of operators and equipment.

Q: How does Mikrouna handle equipment upgrades and replacements?

A: We continuously invest in R&D, keeping abreast of industry trends and market demands to upgrade and improve our equipment. Upgrade services are provided to ensure that clients’ equipment remains advanced and competitive.

Q: Compared to competitors, what are the advantages of Mikrouna’s equipment?

A: Our equipment excels in technological innovation, performance stability, production efficiency, customization services, and after-sales support. By continuously enhancing our technical capabilities and service levels, we provide clients with more valuable lithium-metal solid-state battery production equipment.
