Battery Tab Cutting Machine (Mk-ctab100)
Application range
This equipment is applicable to the fixed-length cutting of the pole piece and electrode tab of the lithium battery cell, and can be applied to the cutting after the electrode tab is pre-welded.

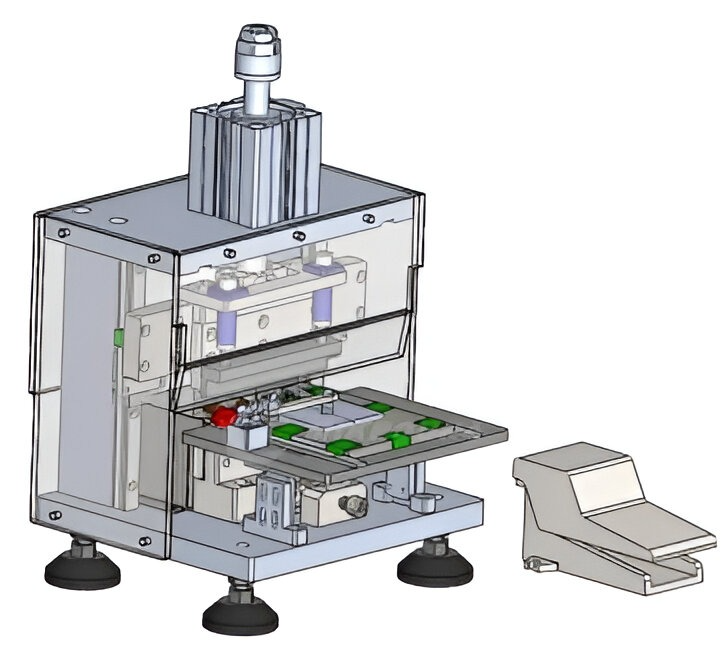

Electrode tab cutting machine(The picture is only for reference)
Function features
1) Up and down knife cutting materials, the fracture is flat without burrs, and the positive and negative waste materials are collected separately.
2) It has a pressure block and cuts the tabs after pressing tightly, the length of the electrode tabs left can be flexibly adjusted according to the battery.
3) When the product is changed, it can achieve corresponding adjustments.
4) It is completely pneumatic, and is controlled by lightly touching the mechanical valve, with simple and convenient operation.
Technical parameters
| Series | Name | Parameters |
| 1 | Power source | Single phase AC220V±10%,Frequency 50HZ,Power0.1kw |
| 2 | Air source | 0.5~0.8Mpa compressed air |
| 3 | Working mode | manual loading and unloading |
| 4 | Applicable specification | The center distance of the electrode tabs ≤100mm |
| 5 | The lifetime of the cutting | One million times(grinding) |
| 6 | Equipment dimension | L300*W300*H450mm |
| 7 | Equipment weight | Around 30Kg |
FAQ
Q:Do you provide after-sales service?
A:Yes, our engineers available to service machinery overseas.
Q: What quotation to use?
A:General FOB quotation, other quotations can also be negotiated.
Q: In case of FOB quotation, the factory is responsible for which port to ship to?
A:Shenzhen Port.
Q:Full set of lithium battery equipment, for example:
A:Mixing machine-coating machine-rolling machine-slitting machine-stacking machine-Die cutting machine-welding machine–packaging machine –injection machine–degas machine, etc.
Q:If I want to customize the equipment, how long does it take?
A:We can provide customized services for our customers. It usually takes about 90-120 days, depending on the specifications of the customized equipment.
Q:Are you a manufacturing factory or trading company?
A:We have 3 modern manufacturing factories in Shanghai, Hubei and Dongguan of China.
Q:How to buy?
A:Simply contact our sales and inform your demands, request for a Proforma Invoice. The order will be shipped after receipt of all payment.
Q:How can I trust you?
A:Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check our factory. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for a long time. You can always rely on us.
Q:How is your warranty?
A:12 months trouble-free warranty from the date of acceptance of the equipment, during which the supplier is responsible for free remote guidance maintenance equipment. For the parts that need to be replaced during the warranty period, the transportation cost is paid by the buyer before delivery.
Q:How is your technical support?
A:Online technical support is provided free of charge during the warranty period, and offline technical support is chargeable.
