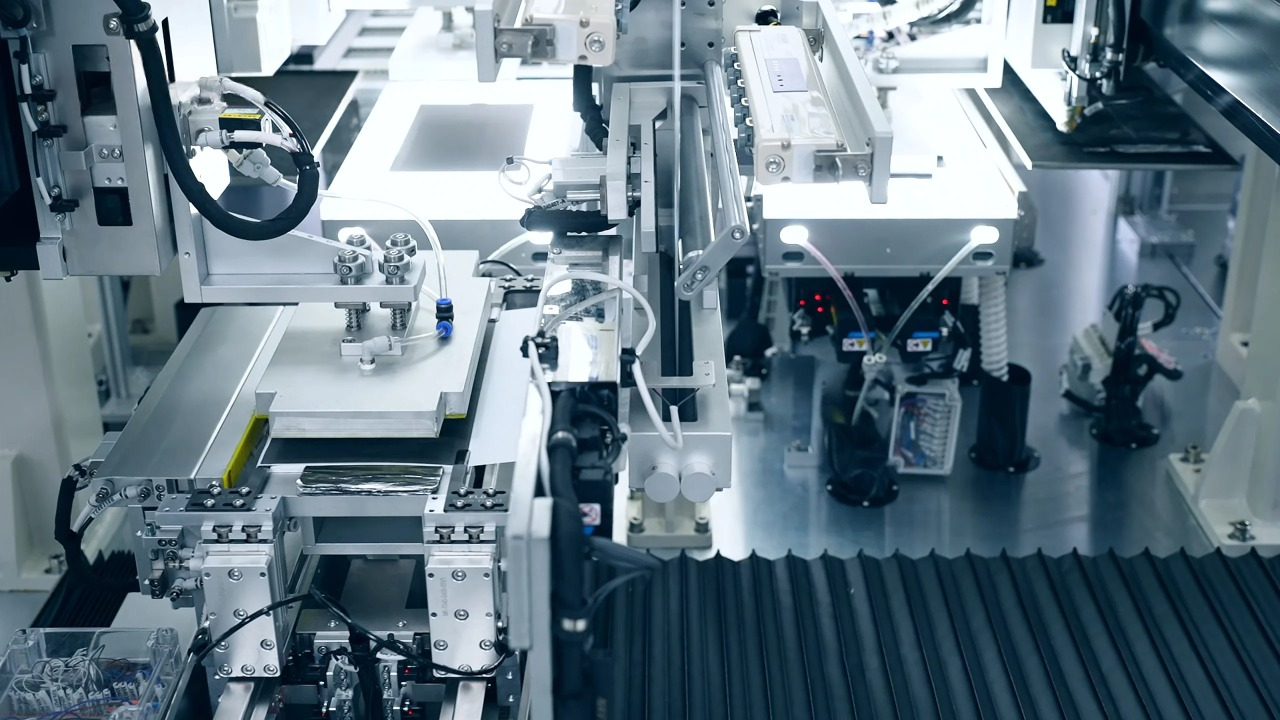

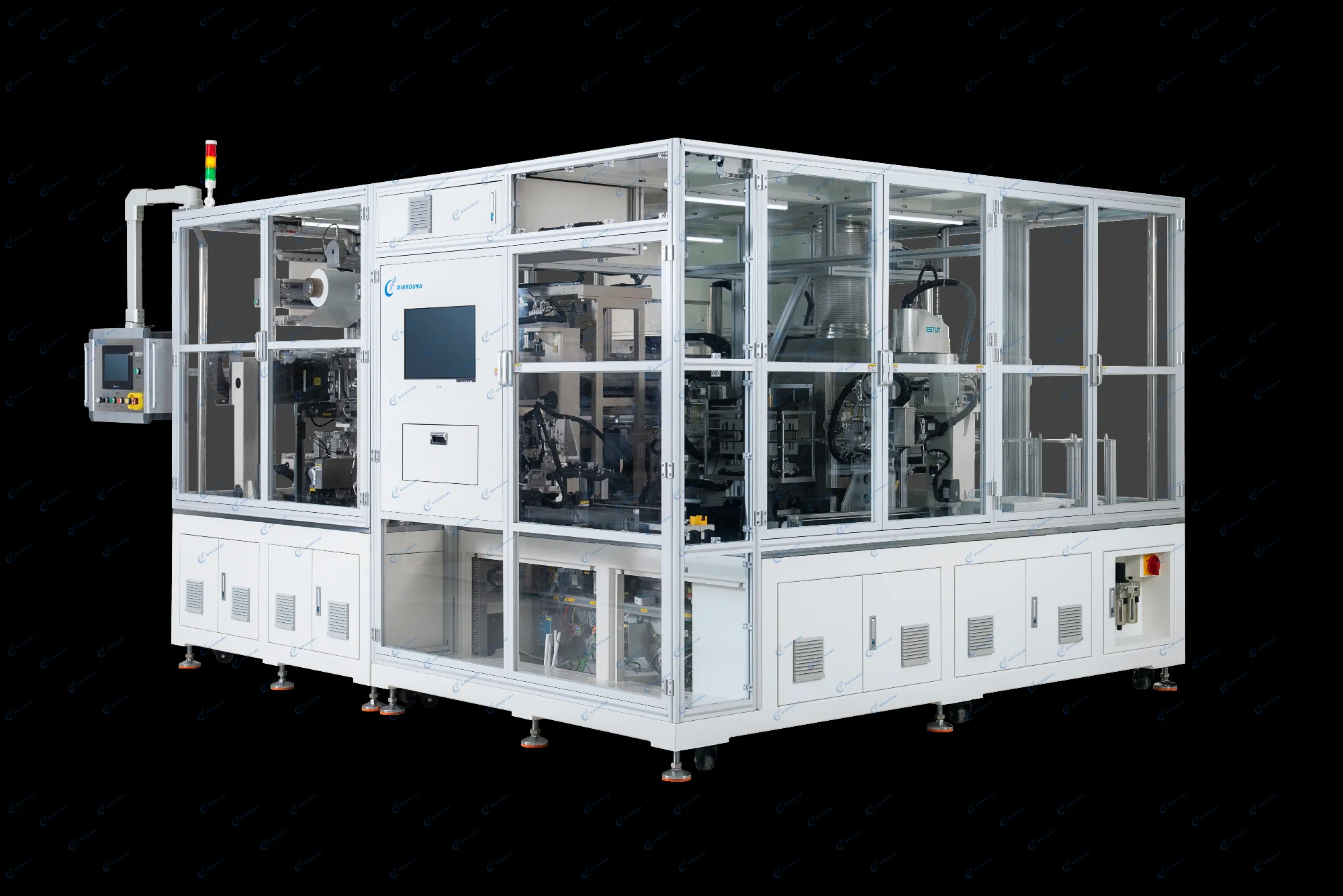

Automatic Stacking Machine for High-Power Lithium-Metal Battery

The stacking speed can reach 1pc/1s (for lithium metal sheets) and 1pc/0.6s (for lithium battery electrode sheets).

Equipped with a CCD positioning mechanism to ensure the accurate stacking of electrode sheets.

The electrode sheets auto-loading, the separator automatically unwinding, CCD deviation correction and the automatic stacking, realizing the automated production from material loading to unloading of Li-metal battery cells.

Li-metal stacking machine is applied in the environment of drying room (-45℃ to -60℃ dew point). When used in conjunction with a sheet-making machine, it can be also compatible with the stacking of Si-C or Graphite cathode cells, meeting the diverse production requirements.

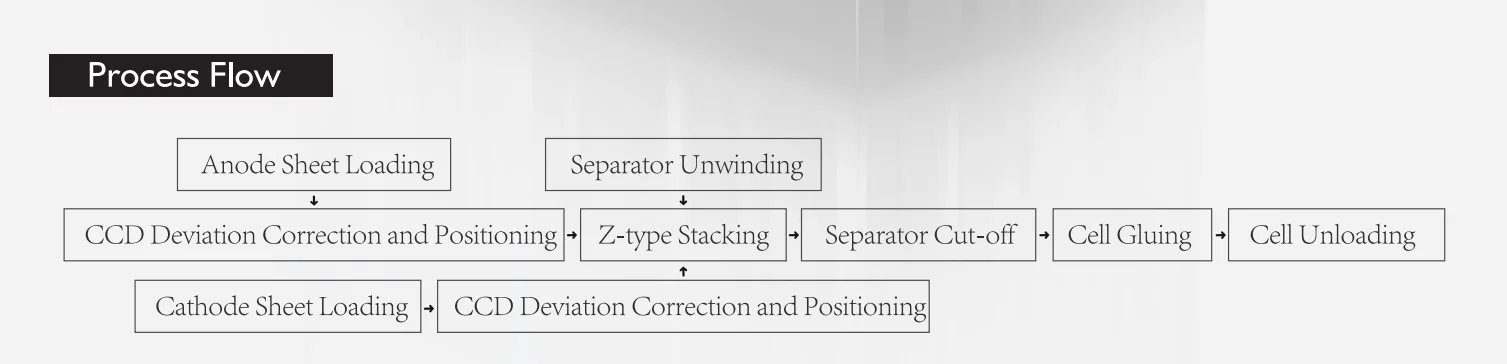

Process Flow

Separator Unwinding

Anode Sheet Loading

CCD Deviation Correction and Positioning

Z-type Stacking

Separator Cut-off

Cell Gluing

Cell Unloading
Cathode Sheet Loading

CCD Deviation Correction and Positioning

FAQ

Q:Do you provide after-sales service?
A:Yes, our engineers available to service machinery overseas.

Q: What quotation to use?
A:General FOB quotation, other quotations can also be negotiated.

Q: In case of FOB quotation, the factory is responsible for which port to ship to?
A:Shenzhen Port.

Q:Full set of lithium battery equipment, for example:
A:Mixing machine-coating machine-rolling machine-slitting machine-stacking machine-Die cutting machine-welding machine–packaging machine –injection machine–degas machine, etc.

Q:If I want to customize the equipment, how long does it take?
A:We can provide customized services for our customers. It usually takes about 90-120 days, depending on the specifications of the customized equipment.

Q:Are you a manufacturing factory or trading company?
A:We have 3 modern manufacturing factories in Shanghai, Hubei and Dongguan of China.

Q:How to buy?
A:Simply contact our sales and inform your demands, request for a Proforma Invoice. The order will be shipped after receipt of all payment.

Q:How can I trust you?
A:Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check our factory. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for a long time. You can always rely on us.

Q:How is your warranty?
A:12 months trouble-free warranty from the date of acceptance of the equipment, during which the supplier is responsible for free remote guidance maintenance equipment. For the parts that need to be replaced during the warranty period, the transportation cost is paid by the buyer before delivery.

Q:How is your technical support?
A:Online technical support is provided free of charge during the warranty period, and offline technical support is chargeable.
